Balcony window - the window with balcony feeling - Svalson Open
Discover the Svalson Open: a revolutionary vertical sliding window that combines modern design with cutting-edge technology. Perfect for any setting - from your cozy home to a professional office or inviting public space.
The Svalson Open is characterized by its unique design: a fixed lower pane and a movable upper pane. The innovation lies in the details - the lower wing can be folded inwards to make cleaning easier, while the upper pane can be flexibly adjusted and fixed at any height.
Safety is our top priority: the window locks automatically, both in the closed position and in ventilation mode, ensuring your safety at all times. The Svalson Open is extremely easy to operate - whether via the control panel, remote control or intelligent smart home solutions.

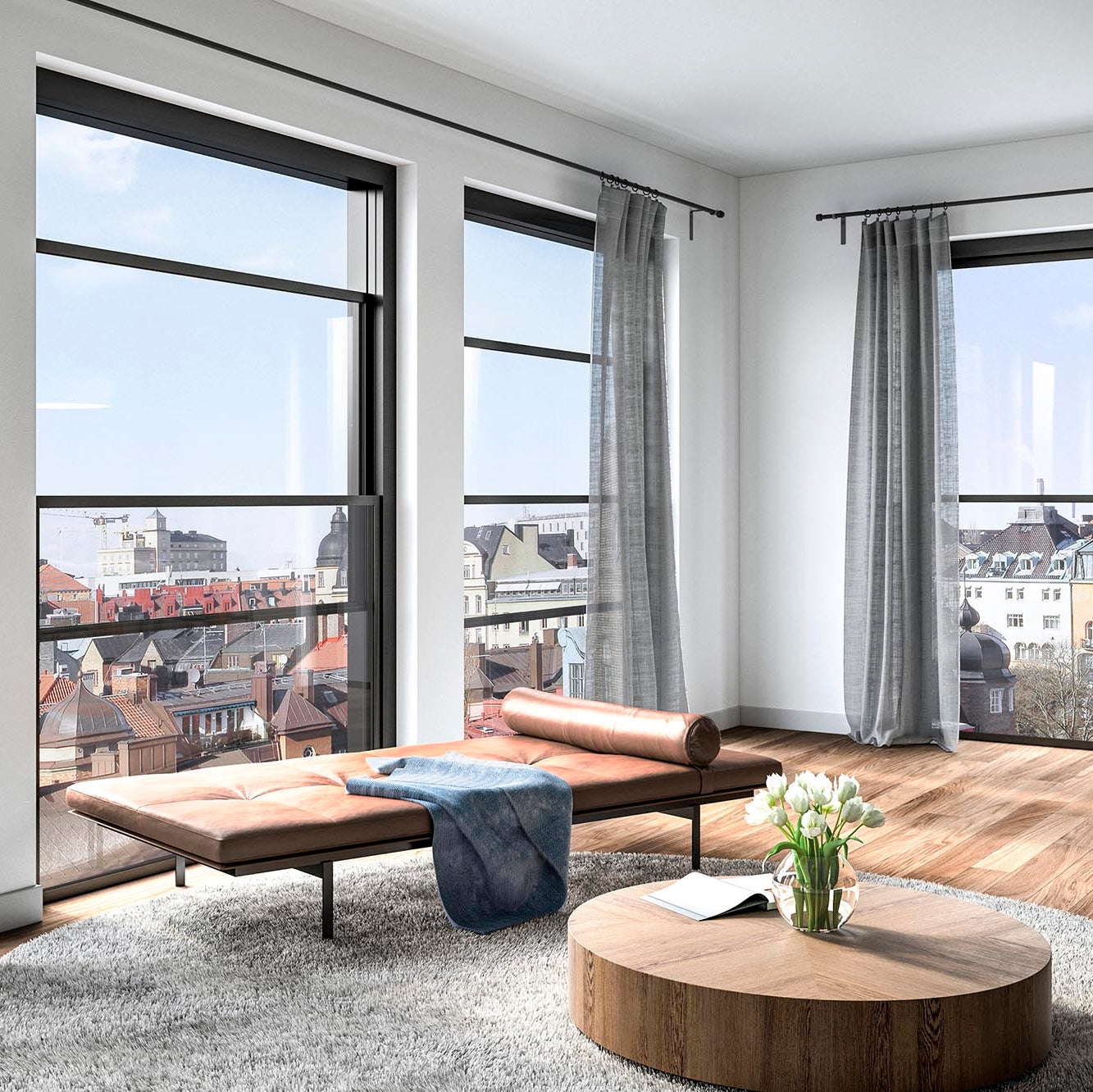

Experience the feeling of an open balcony, even if there is no real balcony. The Svalson Open efficiently expands your living space and lets in maximum daylight thanks to its slim frames. Enjoy the freedom and the view without having to sacrifice comfort or security.
Additional information about the product Balcony window - the window with balcony feeling - Svalson Open
Manufacturer: Svalson AB
| name | Svalson Open. Vertically sliding, electric window |
| width | Module size max. 2000 mm |
| Height | Module size max. 2100 mm Safety height of fixed glazing 1100-1200 mm, adapted to the installation height. |
| CE classification | Thermal transmittance Uw = 1.0 W/m2K Acoustic power Rw = 36 dB Resistance to wind load - Class 3C Water resistance - Class 9A air permeability - class 4 Machinery Directive 2006/42/EC / EMC Directive 2014/30/EU |
| design | Wooden frame, inside made of wood and outside made of metal. Svalson Mechanical Safety System, motor, gearbox and automatic locking are integrated into the frame. Maintenance and repairs are carried out from the inside. |
| locking | Automatically locks in closed position/ventilation mode at any height. |
| supply voltage | 230V ~ 50Hz, connection cable through the upper frame. |
| Open/Close | Via the control panel, the remote control or via wireless smart home solutions. Manual emergency closure. |
| Glass | Triple insulating glass with tempered laminated safety glass as standard. |
| surface treatment | Inside: Window paneling made of varnished, knot-free pine or other types of wood such as oak, teak. Exterior: Powder coated aluminum as standard. |
| Manufacturer | Svalson AB, Sweden |
| Sales Switzerland | INTECH-ICS AG, 8360 Eschlikon |
Data sheet Svalson Open - German
