Facade switch P 7195

Der Fassadenschalter P 7195 ist für den Einbau in Fassaden und Trennwänden. Einsatzgebiet Fassadenschalter: Innen- oder Aussenbereich.

  Lagerbestand gering. Lieferzeit auf Anfrage.
Artikelnummer:  64120
  • description
  • Additional Information
  • Documents

Facade counter P 7195

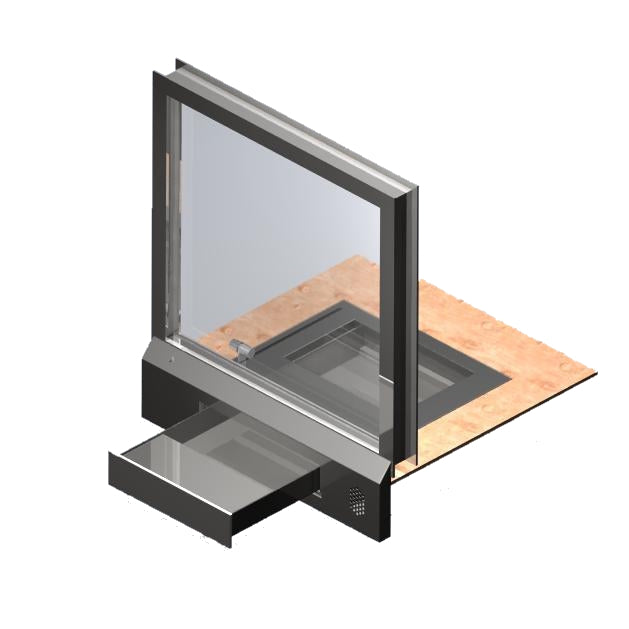

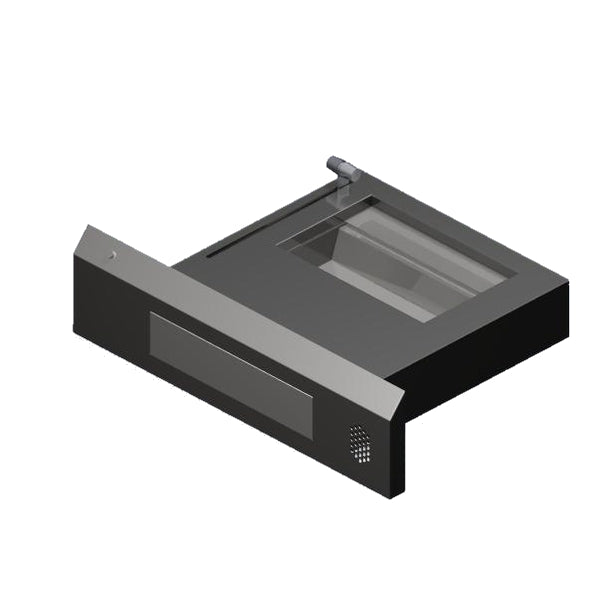

This device was developed for flush installation in facades and partition walls. It is preferably used in porter's lodges and at night box offices indoors. An intercom for communication between inside and outside is integrated in the device.

Features of the facade switch P 7195

  • Installation: flush with the front, in partition wall or facade
  • External dimensions: width 670 mm, height 178 mm, depth 493 mm
  • Feed size: W x H x D = 310 x 50 x 210 mm

Version of the facade switch P 7195

  • Design: front panel in brushed stainless steel, housing made of sheet steel with textured paint RAL 9005, deep black

Bullet class facade switch P 7195

  • Bullet class: FB 4 - NS according to DIN EN 1522 also according to BGV C9 (formerly UVV-Kassen)

Additional information on the product Facade switch P 7195

Supplier : SITEC GmbH

Documents for Product facade switch P 7195

Data sheet facade switch P 7195
