Vertical sliding window

Name: Vertical sliding window
Brand: Svalson AB
SKU: 71000
Availability: InStock

Vertical drop/lift window for indoor and outdoor use: operable at the push of a button, optionally with side/top/bottom fixed glass panels. Robust aluminum or steel frames, customizable in two or three parts. Software-controlled, CE marked, ideal for secure handovers and high security requirements.

Lagerbestand gering. Lieferzeit auf Anfrage.

Artikelnummer: 71000

The quantity must be 1 or more.

Description
Additional Information
Documents

Vertical lifting window

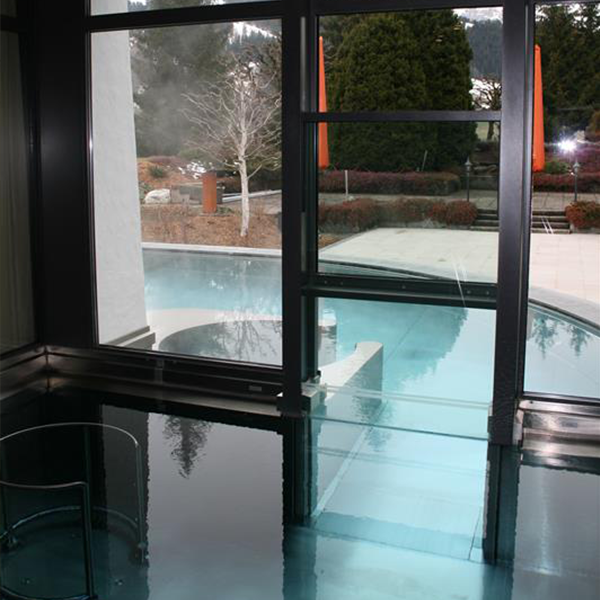

The lifting windows have been developed for both indoor and outdoor use.
Depending on requirements and design, the lift-and-slide window can be supplied in two or three sections, with or without glazing beads. Fixed side, top, and bottom glass is optionally available. The sturdy construction allows for glass thicknesses up to 75 mm. The aluminum frame is available in a natural anodized finish or, like the steel frame, in a wet or powder-coated finish. Other filling elements can also be used instead of glass.

Features of lift windows

The lift window can be delivered as a drop window upon request.

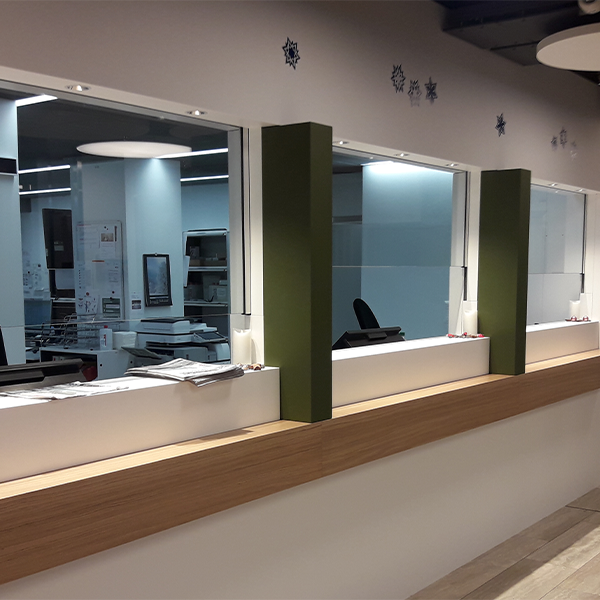

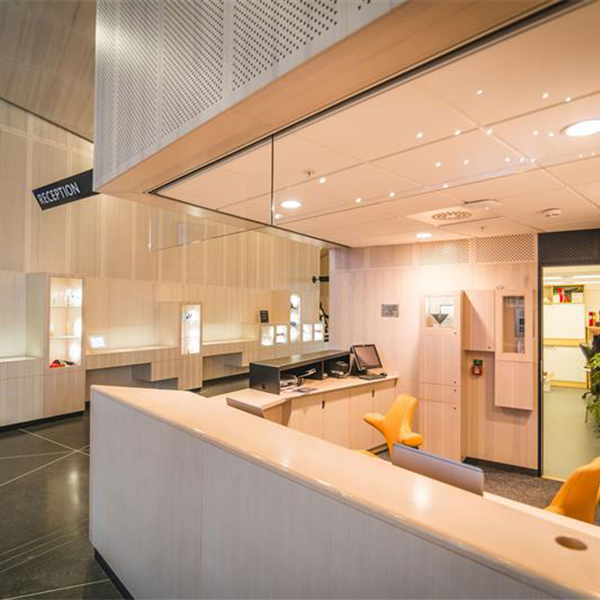

A simple push of a button – that's all it takes to open our lift windows. We manufacture ergonomic lift windows for reception areas, restaurants, pharmacies, hospitals, police stations, and environments where high security is required.

How lift windows work

Our electrically operated lift and slide windows are manufactured to the unique and specific requirements of each individual customer. Our latest control system is fully software-driven, giving us even greater flexibility to customize the functionality of each sliding window to ensure complete customer satisfaction.

Labeling Lift/lower/lift window: vertical

All our electrically operated windows are CE marked.

Examples of configuration

Fenster mit einem Schiebeabschnitt — Window with a sliding section

Fenster mit zwei Schiebeabschnitten — Window with two sliding sections

Fenster mit drei Schiebeabschnitten — Window with three sliding sections

Fenster mit Fixglas auf der rechten Seite — Window with fixed glass on the side

Fenster mit Fixgläser auf jeder Seite — Windows with fixed glass on each side

Technical features

name	AH50/AH60
Description	Robust, horizontally sliding window
Width	Customer choice*
Height	Customer choice* *Max/Min size (W x H) depends on the design (2-pane or 3-pane), the glass weight and the ratio between width and height.
Thick frames	From 160 mm (2-disc) From 240 mm (3-disc) **The thickness of the frame depends on the design (2-pane or 3-pane), the size and the glass weight.
Wide side posts	80 mm
Height of upper profile	80 mm
Lower profile	Optional: Decorative sill. Please note that drainage must be considered even if the window is equipped with a sill.
glass frame	35 mm
construction	The motor, transmission, fall protection and automatic locking are integrated into the frame.
Locking	Automatically locks in closed position. Options: Interval lock, key lock.
Supply voltage	230V AC transformer. Option: UPS.
steering	S3 control system with hold-to-run buttons. Soft start/stop, adjustable speed, optional push buttons, optional alarm closure, etc. and various control switches.
Glass	D4-15 double glazing is standard.Other glasses up to 26 mm thick are available as an option.
Surface treatment	Satin-finished, anodized aluminum is standard. Other optional finishes include powder coating, anodizing in various colors, and stainless steel trim.
Manufacturer	Svalson AB, Sweden
Sales Switzerland	INTECH-ICS AG, 8360 Eschlikon
