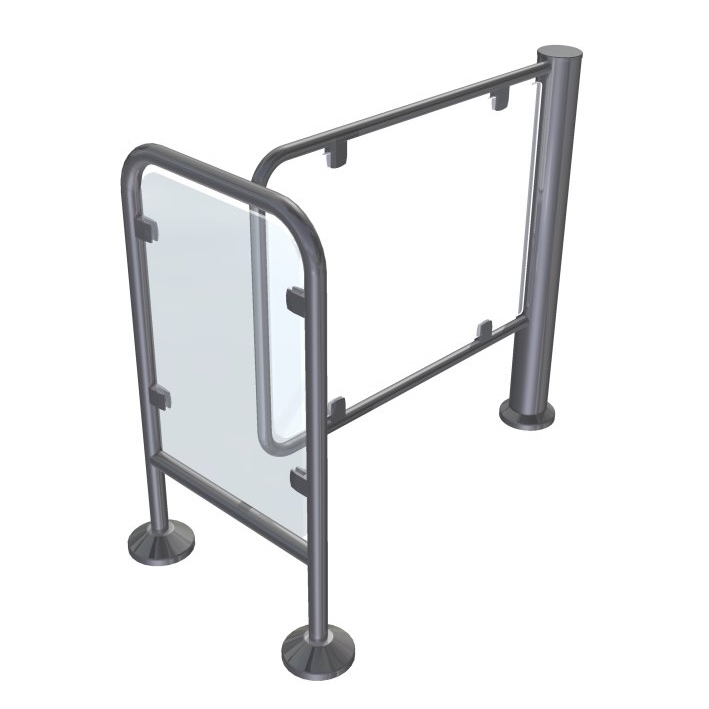

Motorized swing door LEONARDO Baden

The Motorized swing door LEONARDO Baden is a waist-high, motor-driven swing door with acrylic glass panel, ideal for controlled access in indoor areas. Particularly suitable for Swimming pools, thermal baths, sports and leisure facilities as well as barrier-free access with strollers or wheelchairs.

Characteristics

• Escape route function: Opening adjustable by contact pressure between 50 and 250 Nm, additionally triggered via fire alarm control panels, control panel or escape door terminal
• Motor integrated in the standpipe: Compact design for harmonious integration into any architecture
• Smooth running & precise zero position: Thanks to LOGITURN control and planetary gear

Technical specifications

• Materials: High-quality CrNi steel (material 1.4301) and acrylic glass
• Temperature range: Operation from -5 °C to +40 °C
• Passing frequency: Up to 25 people per minute
• Protection classes: Housing IP44, mains voltage components IP65
• Power supply: 100-240V~, 50-60Hz, 24VDC UPS
• Average consumption: 35 Wh

Individual customization options

• Passage direction selectable: For flexible application possibilities
• Lane divider and tandem setup possible: Ideal for wider access
• Control panel and escape door terminal: Available for additional control and security options

The Motorized swing door LEONARDO Baden offers maximum flexibility, convenience, and security for modern access solutions. Contact us for further information and personalized advice.
