Sliding tray P 7010

Die Schiebemulde P 7010 für Theken ist mit zwei gegenläufigen Zahlmulden ausgestattet. Die Schiebemulde P 7010 ist für den Innen- und überdachtem Aussenbereich.

Artikelnummer:  64000
  • description
  • Additional Information
  • Documents

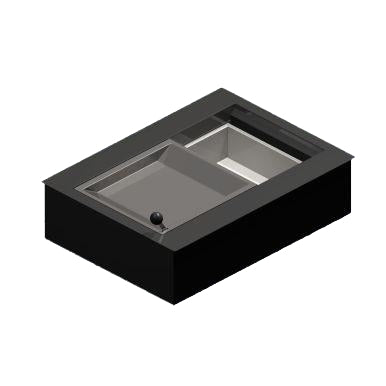

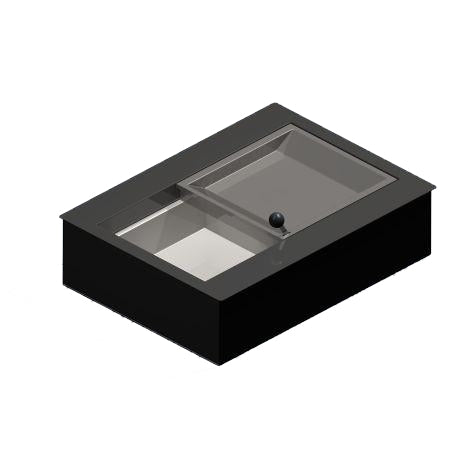

Sliding tray P 7010

This device for flush installation in counters is equipped with two counter-rotating payment trays. It is used indoors and outdoors at banks, gatekeepers and other checkout areas, when money and objects are to be moved quickly and easily in simultaneous change.

Properties of the sliding tray P 7010

  • Installation: indoors, counter installation - in the middle under glazing
  • External dimensions: width 476 mm, height 167 mm, depth 642 mm
  • Passage size: upper trolley W x H x D = 270 x 30 x 215 mm / lower trolley W x H x D = 298 x 86 x 286 mm

Design sliding tray P 7010

  • Design: RAL 9005 black, textured paint. Other colors or cover frames in stainless steel or aluminum on request.

Additional information on the product sliding tray P 7010

Supplier : SITEC GmbH

Documents on Product sliding tray P 7010

Data sheet sliding tray P 7010
Safety flyer INTECH-ICS AG
