Facade car switch P 7091

Der elektrisch bedienbare Fassadenschalter und Autoschalter P 7091 wurde speziell für Tankstellen entwickelt. Einsatzgebiet Fassadenschalter: Banken Apotheken

  Lagerbestand gering. Lieferzeit auf Anfrage.
Artikelnummer:  64185-156681

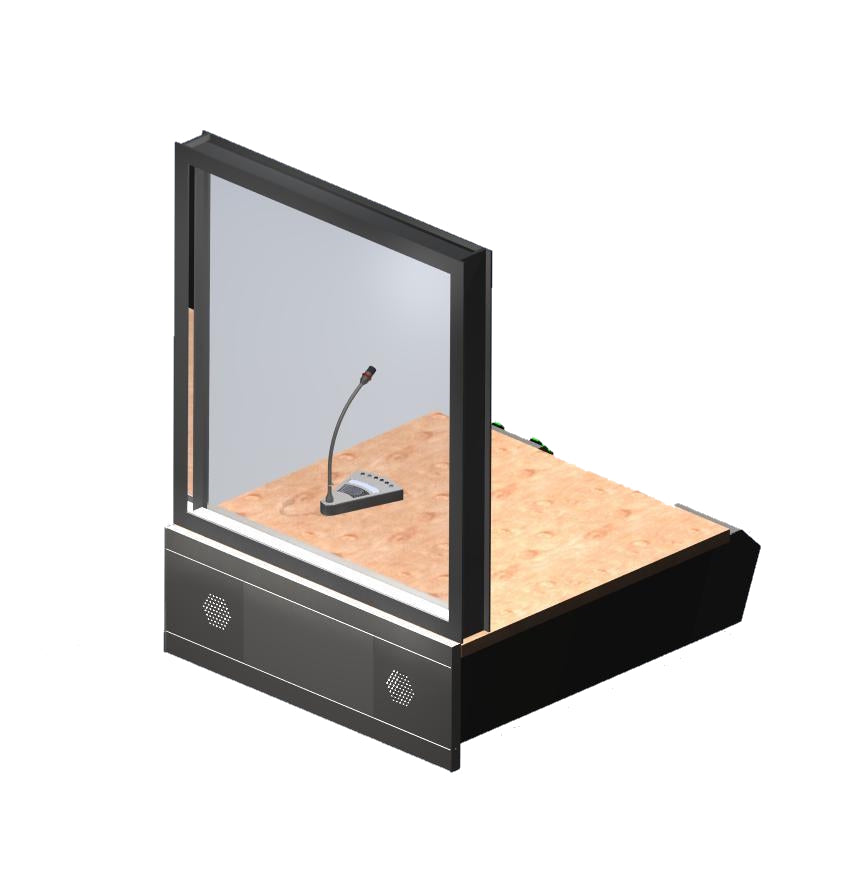

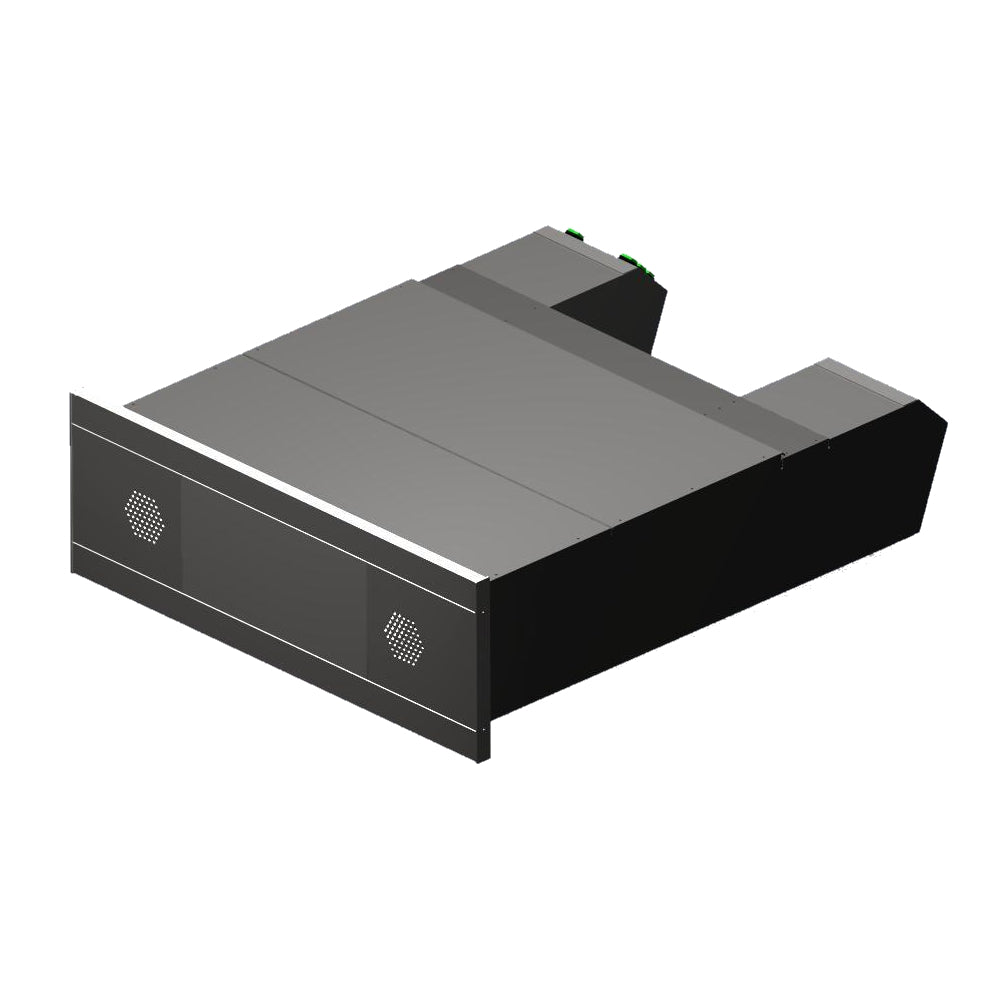

Facade car switch P 7091

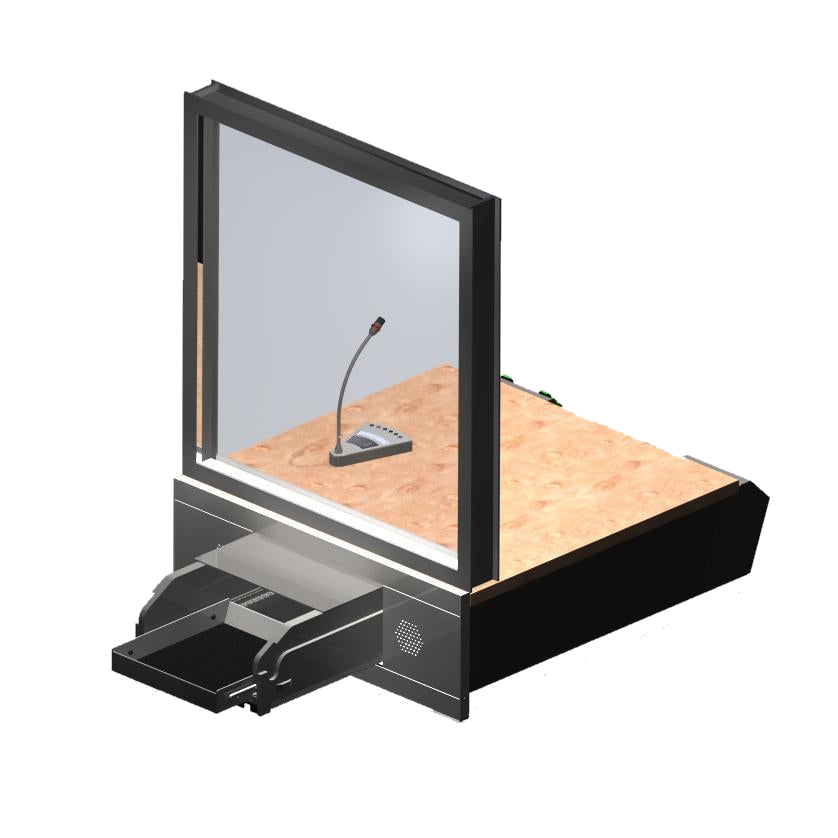

This electrically operated device was specially developed for petrol stations, but it can also be used as a car counter at banks, pharmacies and weighing stations. The construction of the facade switch enables it to be installed under the inner worktop. The transport trolley moves out from below the table top to the cash register side, no access opening is required from above - this leaves this space free for control devices, keyboards, cash registers, etc. Larger items such as petrol / oil canisters can also be passed through in the transport trolley.

Properties of the facade car switch P 7091

  • Installation: flush with the front, in the wall or facade, below the inner table top, so no access opening from above is required and the space remains free for e.g. other operating devices or cash registers
  • Wall opening: W x H x D = 810 x 245 x 1,012 mm
  • Feed size: W x H x D = 310 x 140 x 325 mm

Version of the facade car switch P 7091

  • Execution: front panel stainless steel V2a; inner, visible parts in RAL 9005 black

Additional information on the product facade car switch P 7091

Supplier : SITEC GmbH

Documents about the product facade car switch P 7091
