Facade counter P 7196

Der Fassadenschalter P 7196 ist für den frontbündigen Einbau in Fassaden und Trennwänden. Einsatzgebiet Fassadenschalter: Innenbereich.

  Lagerbestand gering. Lieferzeit auf Anfrage.
Artikelnummer:  64034

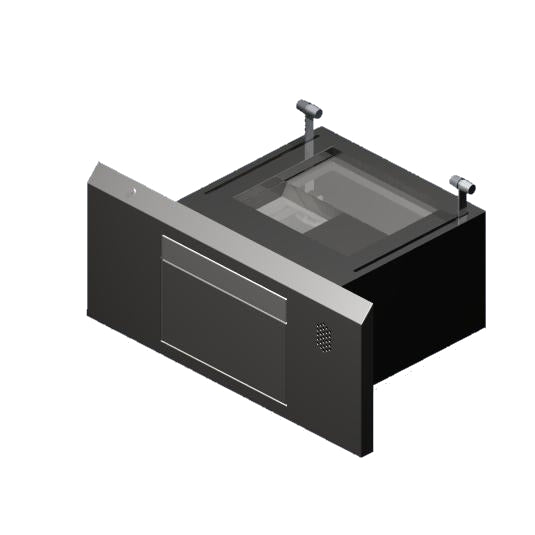

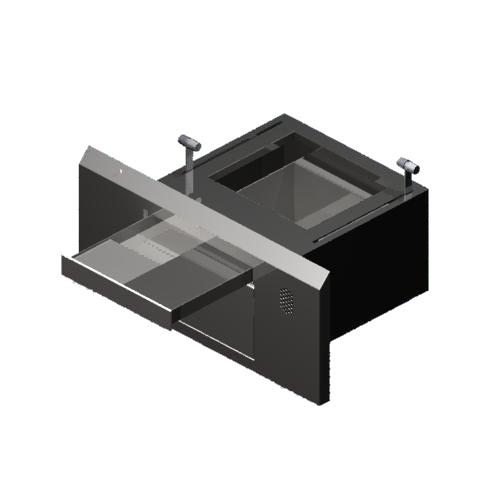

Facade counter P 7196

This device was developed for flush installation in facades and partition walls. It is preferably used in porter's lodges and as a night counter, e.g. at petrol stations and pharmacies, indoors and outdoors when larger items or goods are to be issued in addition to money and receipts. An intercom for communication between inside and outside is integrated in the device.

Features of the facade switch P 7196

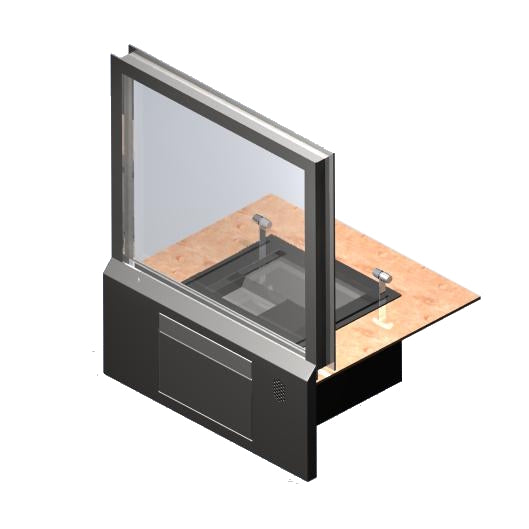

  • Installation: flush with the front, in partition wall or facade
  • External dimensions: width 670 mm, height 340 mm, depth 493 mm
  • Passage size: Top: W x H x D = 155 x 30 x 150 mm / Bottom: W x H x D = 310 x 157 x 443 mm

Version of the facade switch P 7196

  • Design: front panel in brushed stainless steel, housing made of sheet steel with textured paint RAL 9005, deep black

Bullet class facade switch P 7196

  • Bullet class: FB 4 - NS according to DIN EN 1522 also according to BGV C9 (formerly UVV-Kassen)

Additional information on the product Facade switch P 7196

Supplier : SITEC GmbH

Documents for Product facade switch P 7196
